Products: Magnum Boat Lifts



Magnum MiniMag Personal Watercraft Lifts

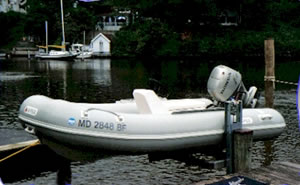

The Mini Mag Personal Watercraft Lift was designed as a user friendly solution to storing your personal watercraft (PWC) or small boat. No lines to tie and no trailers needed. The Mini Mag uses forklift-like arms to raise and lower your craft from your own pier. The low profile design makes this lift very attractive.

The Mini Mag is available in 800 lb. and 1,500 lb. weight capacities. Both models are available with either manual or electric winches. A radio remote control is available as an option with the electric model.

The Mini Mag's track is secured to a piling with the supplied galvanized mounting hardware. The carriage travels through the track on polypropylene rollers and is raised and lowered by a stainless steel cable. Carpeted runners support and protect the bottom of the watercraft.



Vertical

Vertical Rotators

Capacity 800 lbs. 1,500 lbs. 800 lbs. 1,200 lbs.
Arm Length 3' 5' 3' 5'
Arm Width 2' 3' 2' 3'
Piling Requirement 8" dia. 8" dia. 8" dia. 8" dia.
Travel Length 6'-8'-10' 6'-8'-10' 6'-8'-10' 6'-8'-10'
