Magnum Model "HD"
Magnum Model "HD" features molded drive enclosures, complete guide pole package, elevated outside walkway, galvanized steel construction, 2/3 year warranty, stainless steel cables and sheaves, worm gear driven winches, optional remote controls and optional E-gear drives.

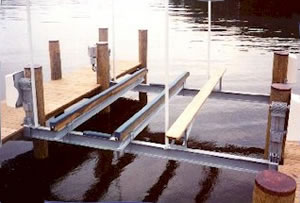

The "HD" model is designed to afford maximum hull support while keeping a low profile appearance. This design allows for easy access to your vessel because it is positioned inches away from your dock. Standard to the "HD" model is a fully adjustable "I" beam bunking system to gently cradle your boat. For capacities of 15,000 lbs or less, the worm gear driven winches are located on the dock, allowing for quick and easy maintenance. An elevated outside walkway allows access to both sides of your vessel for easy cleaning and maintenance.
| Capacity | 8,000 lbs., 10,000 lbs., 12,500 lbs., 15,000 lbs., 20,000 lbs. |
| Cradle Travel | 9' standard, opt. to 13' |
| Req. Power* | 110 volt / 20 amp - 220* volt / 15 amp* |
| Piling Diameter | 8" minimum |
| Piling Height | 18" above the deck |
| Piling Spacing | Please call |
